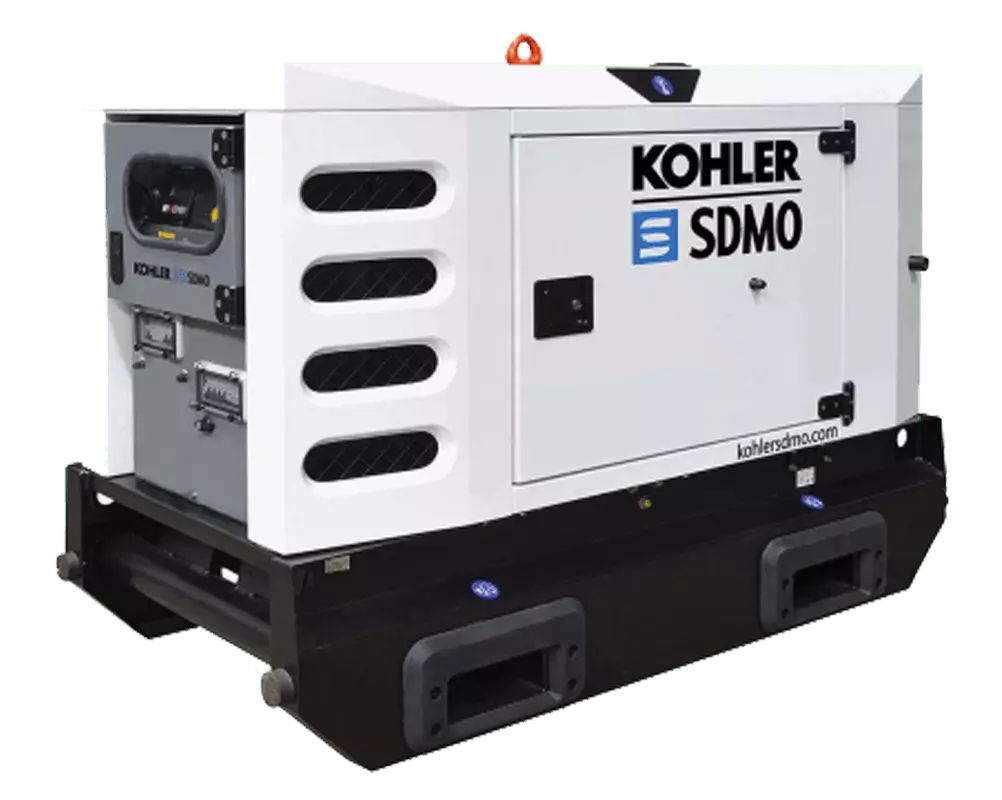

SDMO R22c3
SDMO Generators are easy to use, compact and reliable providing maximum safety as well as reducing noise and fuel consumption. These generators provide professionals with the most productive equipment within the field.
Product Information
The generating sets from the SDMO Portable Power range provide a reliable external energy source for a wide variety of needs. The range is designed for construction professionals, but is also suitable for the general public, and has been designed to tackle all kinds of site constraints, whether technical, ergonomic or safety-related.
| Description | Value |
|---|---|
| Dimensions (mm) | 1850 x 901 x 1355 |
| Auxiliary Output Continious | 20 kVA |
| Auxiliary Output Standby | 22 kVA |
| Sound Powerlevel | 90 |
| Average Sound Pressure Leisure | 32db(A) |
| Engine Type | S4Q2-Z361SD |
| Fuel Tank Capacity | 153 litres |
| Fuel Consumption @ 75% Load | 4.7 |
| Running Time | N/A |
| Wet Weight | 900kg |
Engine Specifications
Power Definition
PRP: Prime Power is available for an unlimited number of anual operating hours in variable load applications, in accordance with ISO 8528-1
ESP: The standby power rating is applicable for supplying emergency power in variable load applications in accordance with ISO 8528-1.
Overload is not allowed
| Characteristics | Engine Data |
|---|---|
| Engine Type | S4Q2-Z361SD |
| Emission Compliance | Stage V |
| Prim Output (kW) | 17.2 |
| Number of Cylinders | 3 |
| Fuel | Diesel |
| Standard Control Panel | NEXYS |
| Cooling System | Water |
Safety Features
Large engine access doors with anti-opening lock system to avoid opening during transport
Water and dust proof control power box integrating electronic and electric devices
Door retainers
Extra Information
Fuel pre-filter
Oil Soil Pump
Door or panel access for an easy cleaning of the radiator
Easy lift canopy designed to facilitate the access to engine and alternator
Forklift pockets and frame protection pads
Traction bar to move the genset on the ground using traction
Integrated lifting eye
Heavy Duty air filter with restriction indicator
AREP double impregnation alternator
Waterproof wiring loom and connectors
Features
Four-pole circuit breaker
Central lifting ring
Primary filter
Oil drainage pump
Battery isolating switch
Containment fuel tank and large autonomy
Inlet air preheating
Rental compact canopy
Leroy-Somer AREP (TS26-S004) Alternator
Forks and frame protection pads
Heavy duty air filter with interchangeable cartridge
Differential projection and earthing rod
